Profile Rail Mounting

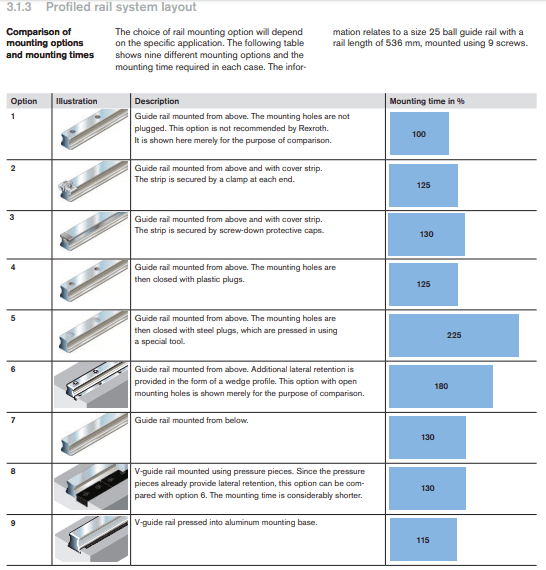

Mounting of profile rails is very important as this will greatly affect the performance of the product. Different mounting techniques, products, and time to mount rails are defined in this section.

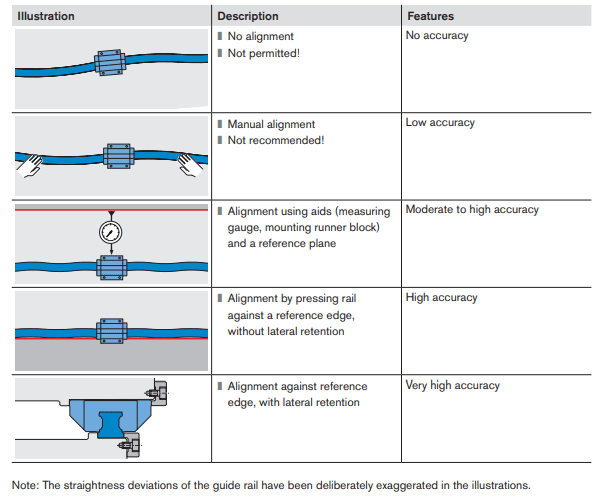

If the guide rail is precisely aligned before tightening the mounting screws, it may be possible to dispense with reference edges. The mounting requirements must be carefully considered before deciding whether and where reference edges will be needed. The product-specific mounting instructions should be consulted when planning the mounting procedure.
