Roller Rail Systems

Introduction

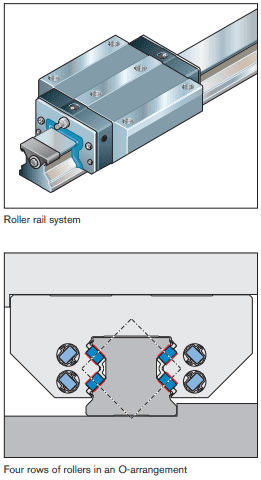

Bosch Rexroth roller rail systems were designed especially for applications in machine tools and industrial robots. Available in various accuracy classes, these linear guides have exceptionally high load-bearing capacity and rigidity. Roller rail systems have four roller bearing circuits in an O-arrangement. The rollers are in line-contact with the raceways at a contact angle of 45°

Features

Rolling elements: Rollers
Very high static load capacities
Very high dynamic load capacities
High static torque capacity
Very high rigidity in all major planes of load application
Very good travel performance even under extremely high loads
Unlimited interchangeability due to precision manufacturing
Integrated all-round sealing
Broad range of accessories for special sector solutions (seals, wipers/scrapers)
Integrated, inductive and wear-free measuring system as an option
Clamping and braking units available
